Researchers are at all times on the lookout for new methods to enhance the agility, efficiency, and effectivity of strolling robots. More often than not, this focus has centered on motor developments. However a workforce at ETH Zurich and the Max Planck Institute for Clever Programs (MPI-IS) is targeted on an alternate strategy—synthetic, electrostatically-powered musculature impressed by animal biology and human anatomy.
Each two- and four-legged robots have grow to be fairly agile over the previous few years due to design developments in motor applied sciences and synthetic intelligence. For a lot of of them, nevertheless, vitality necessities and prices stay a serious hurdle, particularly in terms of AI programs wanted to interpret huge portions of environmental sensor information.
To sidestep these issues, collaborators within the new analysis partnership the Max Planck ETH Heart for Studying Programs (CLS) try to imitate a limb’s extensor and flexor muscular tissues with out the necessity for DC motors or high-powered synthetic intelligence applications. As a substitute of the motorized elements, the brand new design makes use of oil-filled plastic luggage that resemble on a regular basis freezer packs. As detailed in a paper revealed on September 9 in Nature Communications, the workforce’s new hydraulically amplified, self-healing, electrostatic actuators (HASELs) permit a prototype “leg” to simply hop throughout uneven terrain varieties whereas shortly adapting with out producing practically as a lot warmth as conventional motor-powered choices.
To make it work, two “muscular tissues” composed of 4 separate, conductive oil-filled luggage are partially coated on all sides with electrode patches. The muscular tissues are then hooked up by synthetic tendons to a light-weight carbon fiber skeleton body that includes 3D printed knee and hip joints. Then, when it’s time to start leaping, the workforce begins stunning.
“As quickly as we apply a voltage to the electrodes, they’re attracted as a result of static electrical energy,” Thomas Buchner, a doctoral scholar and examine co-first creator, stated in ETH Zurich’s accompanying announcement on September 9.
Buchner likened the costs to what happens while you rub a balloon in opposition to your head, inflicting your hair to stay to it. Because the voltage will increase, the electrodes contract nearer to at least one one other and push the bag’s oil to at least one facet and shorten its total form within the course of. Like in an animal or human leg, one muscle shortens as its companion lengthens.
These exact, fast shifts in muscle dimension and form are essential to efficiently transferring throughout an setting. To find out the correct voltage wanted to deal with the terrain beneath it, the robotic leg depends on a specifically designed laptop code to interpret two enter alerts—one to increase a joint and the opposite to bend it. After every leap, the leg’s joint adjusts to a correct angle relying on the hardness or plasticity of the floor beneath it.
“Adapting to the terrain is a key side. When an individual lands after leaping into the air, they don’t must assume prematurely about whether or not they need to bend their knees at a 90-degree or a 70-degree angle,” Toshihiko Fukushima, additionally doctoral scholar and co-first creator, stated on Monday.
[Related: Watch Google’s ping-pong robot beat humans at their own game.]

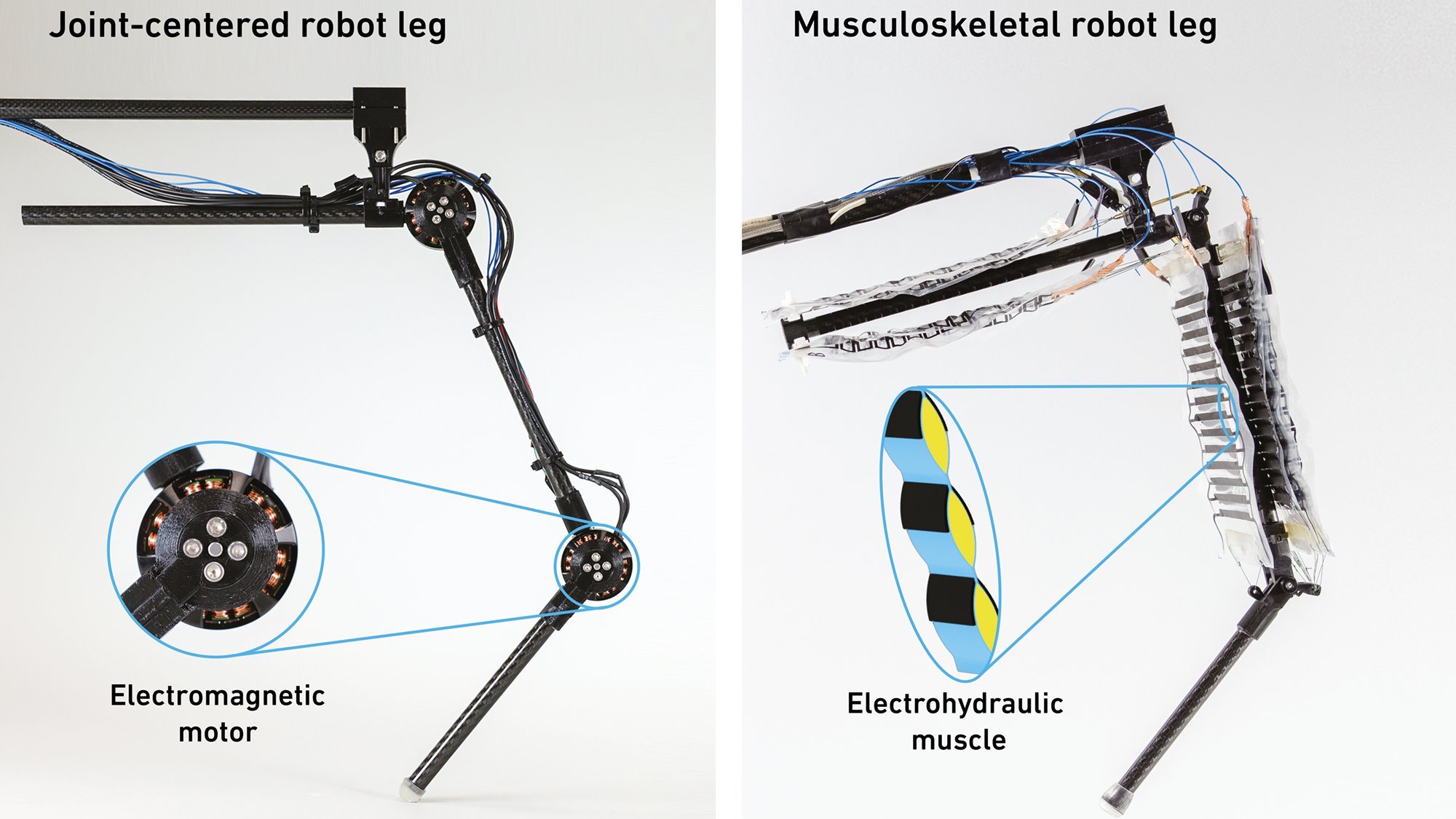

The mix of comparatively easy sensors and laptop coding additionally means the workforce’s robotic leg is way more vitality environment friendly than current, motor-powered programs. That is notably the case in terms of pointless warmth era. Utilizing thermal imaging, a DC motor-enabled leg’s wiring generated temperatures nearing 100 levels Fahrenheit. The HASEL design, in the meantime, created nearly no extra warmth. In comparison with a management leg utilizing a DC motor, the HASEL-enabled limb additionally required simply 1.2-percent the vitality because the motorized, electromagnetic design. In response to Fukushima, this implies their system doesn’t want the identical warmth administration instruments as motor-driven robots, resembling warmth sinks or followers.
For now, nevertheless, the muscle-powered limb might want to stay anchored in place on its small, round monitor. Though way more work and enhancements are wanted earlier than the workforce can check an untethered model, researchers imagine the energy-efficient and simplified design could sooner or later discover its manner into each quadrupedal and bipedal bots that rival, if not surpass, as we speak’s motorized machines.
